Indoor installation: When the LED light strip is used for interior decoration, it is generally not necessary to withstand the wind and rain, so the bare light strip or the epoxy strip light strip type is generally selected. The installation method of the light strip is: Remove the sticker on the surface of the 3M double-sided tape, and then fix the light bar in the place where it needs to be installed. Press it flat with your hand. In some places, you need a corner or a long one. You need to cut it directly at the scissors opening specified on the light bar. Just short.

Outdoor installation: LED light with outdoor installation will be subject to wind and rain. If it is fixed with 3M glue, the 3M adhesive will be reduced for a long time and the LED light strip will fall off. Therefore, the outdoor installation often uses the card slot to fix. Or the way to be cut and fixed by means of snap fastening, the method is the same as the indoor installation, but only need to be equipped with waterproof glue to consolidate the waterproof effect of the connection point.

special attention items:

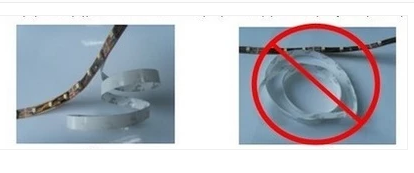

1. When the whole roll of light is not detached from the package or piled up in a group, do not energize the LED strip;

2. When the lamp strip needs to be cut according to the installation length of the site, the lamp strip can only be cut at the place where the scissors mark is printed, otherwise one of the units will not be lit.

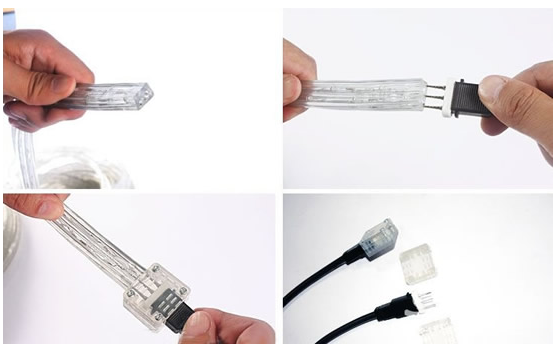

3. When the power supply or the two lights are connected in series, first bend the head of the led light bar to the left and right, so that the wires inside the light strip are exposed about 2-3 mm, cut with a cutting pliers, no burrs, and then with the male To avoid short circuits;

4. Only the Lihua Lanterns with the same specifications and the same voltage can be connected in series, and the total length of the serial connection cannot exceed the maximum allowable length;

5. When the light strips are connected in series, each time a section is connected, a section is lighted to find out whether the positive and negative poles are connected incorrectly and whether the direction of light emission of each strip of light is consistent;

6. The end of the lamp strip must be covered with a PVC tail plug. After being fastened with a clip, the perimeter of the interface is sealed with a neutral glass glue to ensure safety.

7. Because the LED has unidirectional conductivity, if a power cable with an AC/DC converter is used, after the power connection is completed, conduct a power-on test to confirm that the positive and negative terminals are connected correctly before putting them into use.
